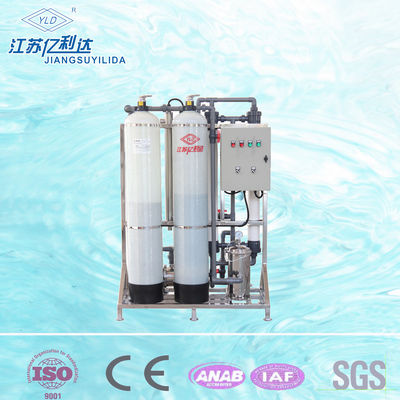

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device
Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device

ภาพใหญ่ :  Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: YLD
ได้รับการรับรอง: CE/ SGS/ISO
Model Number: YLRF-500
การชำระเงิน:
Minimum Order Quantity: 1 unit
ราคา: negotiation
Packaging Details: With plywood case for outer packing
Delivery Time: 20 working days after received your payment
Payment Terms: T/T or western Union or L/C
Supply Ability: 10 units per month
รายละเอียดสินค้า
Product Name: Micro-membrane UF Application: Waste Water recycling
Treated rate: 0.5 m3/Hr Material: FPR/SUS 304
Working temperature: 0~90 ℃ water recover rate: ≥65%
Removal ratio for organics: ≥95% Removal ratio for disinfection: ≥99%
working pressure: 0.6--1.0Mpa Power supply: can be customized
แสงสูง:

reverse osmosis waste water treatment plant

,

reverse osmosis water purification system

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device





Product description:



Micro-Membrane Ultra filtration online Recycling Water Filter is widely used in water treatment,The whole system consists of pre-treatment section,micro filtration membrane desalination section and back-end processing section





1)       pre-treatment section:which consists of multimedia filter,active carbon filter and ultrafilter.The main function of this section is to remove the substance which will pollute the micro filtration membrane.



2)        Micro filtration membrane section,which makes use of Nanometer level physical aperture  to separate purify, refine and concentrate the substance in liquid.





Advantages:



(1) Prevent the micro membrane to be scaling.



(2) Prevent the colloidal substances and suspended solid particles to be fouling.



(3) To prevent the large molecular organic matter, and microbial to be fouling;



(4) To prevent the oxidation substances damaging the membrane .



(5) Maintain the equipment in the long-term stable operation and yield stability.







2. Process description



The whole system consists of pre-treatment section,micro filtration membrane desalination section and back-end processing section.

1) pre-treatment section:which consists of multimedia filter,active carbon filter and ultrafilter.The main function of this section is to remove the substance which will pollute the micro filtration membrane.

2) Micro filtration membrane section,which makes use of Nanometer level physical aperture  to separate purify, refine  and concentrate the substance in liquid.





 3. 1 pre-treatment section

This pretreatment section consists of multimedia water filter,active carbon filter and ultrafilter.the main function is to  remove the particles ,colloid,organic matter, color degree and residual chlorine in the raw water,which reach the  requirement of water flowing into the micro membrane and protect the membrane.

 the pre-treatment section will solve these problems,

(1) Prevent the micro membrane to be scaling.

(2) Prevent the colloidal substances and suspended solid particles to be fouling.

(3) To prevent the large molecular organic matter, and microbial to be fouling;

(4) To prevent the oxidation substances damaging the membrane .

(5) Maintain the equipment in the long-term stable operation and yield stability.

3.2 Technical parameters:



1. Raw water pump

This system equip with one sets of stainless raw water pump,which could provide a water supplying pressure to ensure water stable homogeneous flow through pretreatment equipment.



structure

horizontal centrifugal pump

quantity

1unit

Running details

Flow rate:2m3/hour

lift:30m

material

shell:stainless steel

impeller:stainless steel

raw water pump is prepared and purchased by customer



2. Multimedia water filterThe turbidity of treated water after multimedia filter is 2 degree below.

Designed parameters

size:dia350×1400

structure:vertical cylinder

qty:1 unit

Designed water output

1 m3/hour

Running speed

8~12 m/hour

Designed pressure

0.6MPa

Trial water pressure

0.6MPa

Filtration material

Fine quartz sand

Main material

RFP with PE lining

manufacture

Yilida



3) active carbon water filter

Working principle:adsorption capacity of activated carbon is mainly in the form of physical adsorption,it also can be some selective adsorption,that is chemical adsorption.

parameters



Basic parameters

size:dia350×1400,qty:1 unit

structure:round cylinder



capacity

1 m3/hour

Running speed

10~15m/hour

Designed pressure

0.6MPa

Trial water pressure

0.6MPa

Filtration material

Nut shell activated carbon

Grain size:1.6~4.0mm

Material for main filter

RFP with PE lining

manufacture

Jiangsu Yilida

Activated carbon is main adsorbent extensively applied in water treatment , lattices in various shapes and sizes which  generated during the activation processing ,it will form a huge surface area,so contact surface between carbon and water is very large, and the absorption capacity is strong .Effectively ensure the service life of

follow-up equipment, improve the water quality of effluent.During manufacturing of pure water,the role of activated carbon is  mainly manifested in following four aspects,reduce oxidation degree in water,avoid organic substances into the     contamination of RO membrane module,removal of residual chlorine in water,remove three

halide material (THM).

Set up a vertical active carbon filter with capacity of 0.5m3/h and dimension of dia350×1400,

and high quality shell charcoal filtration material will be filled in the filter.



4) Ultrafiltration filter(UF)

parameter



structure

structure: straight cylinder

size:dia170×650

capacity

1m3/hour

quantity

1unit

Material for main filter

Stainless steel

Filtration cartridge



material

PP

filtration

5μm

quantity

3units

length

10”

Control mode

Replace the cartridge as per pressure difference

Manufacture

Yilida

The reverse osmosis device configured with an ultrafilter(UF) whose output of 1m3/hour and filtration precision of 5 μm ,which could prevent the particles from entering the  pump and RO membrane module,or scratching the surface of the membrane.There are 7 pieces 40 "polypropylene          melt-blown cartridges in the precision filter container ,when the pressure difference reached 1kg/cm3 we should replace it  with a new one..Under normal operating conditions, this filter cartridge can maintain its life of more than 2 ~ 3 months , and filter structure

could meet the requirements of rapid replacement on filtration cartridge.



5.Micro membrane

parameters



model

4040

capacity

1m3/hour

quantity

4 sets

Manufacturer

Hydra-nautic

The main function is to remove suspended particles, colloids, organics,microbes, bacteria, virus and bacillus.decolorization, removing oil .Degrades liquid turbidity,COD and BOD impurities.Micro membrane technology has been applied in         pre-treatment of sea water purifying,reclaimed water reuse and RO, chilled water treatment and preparation, purification and  reform of rural water  and ultrapure water.compared with current technology,it is of standard design,lower cost,higher  output and no- continuous dosing and stable running.but with less labor ,less occupation,higher automatic running .



6. UV sterilizer

quantity

1set

Running parameter

capacity:1 m3/hour

Material

304(SS304)

Total power

40W

Manufacturer

Jiangsu Yilida



Application:

1.For sewage treatment plants new-built or rebuilt project in large cities

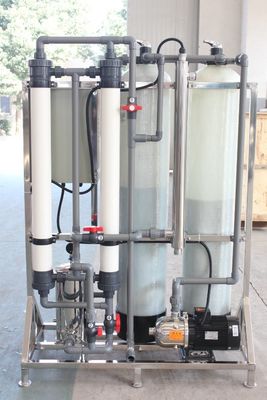

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device 0

2.This technology can directly process urban sewage water into high-quality recycled water for urban

greening, landscape water, road spray, industrial cooling water, fire water,

residential flushing and car washing etc.

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device 1

3.For small and medium sized reclaimed water project in industrial and mining enterprises, hotels, airports,

railway stations, hospitals, office buildings, residential quarters and so on.

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device 2

4.The technology is the best choice for small and medium reclaimed water projects, which has the features

of occupation saving, layout flexibility, situ water fetching, situ processing, situ reuse etc.

Commercial UF Reverse Osmosis Water Treatment Plant Waste Water Recycling Device 3
