| Type: | SFJ -8D | round barrel:: | height:100-320mm diameter:Φ100-180mm, |
|---|---|---|---|
| drum:: | length:100-200mm width:40-80mm height:150-300mm neck diameter: ≤Φ30mm,≥Φ30customiz | Capacity (bottle/hour): | 1L:2200,5L:1600 |
| Size of Machine(mm): | 2000×1100×2200 | Power (kW): | 4 |
| แสงสูง: | Piston filling equipment,piston filler machine |
||

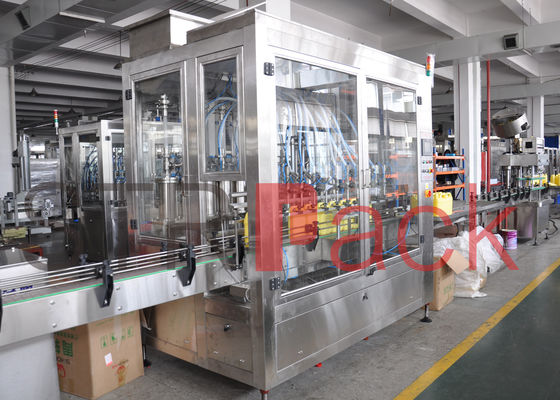

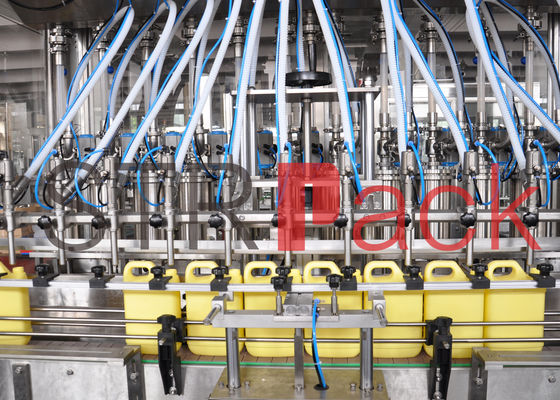

SFJ-D Automatic Piston Filling Machine for 1L-5L Cream Product
Quick Detail:
Piston filling machine , manual piston filling machine , volumetric piston filling machine , simplex piston filling machines , Pneumatic Piston Fillers, Pneumatic Piston Filling machine , piston pump filling machine, Gear pump filling machine, Gear pump filler machine
Description:
1. Suitable for fluid no gas and filling semi liquid.
2. Adopts PLC and touch screen control.
3. The use of submersible filling.
4. In accordance with GMP standard.
Applications:
SFJ-D Automatic Piston Filling Machine is a new generation of packaging equipment for lubricating oil, edible oil and other oil products packaging design of 1 to 5 liters of adjustable. Microcomputer automatic control of PLC. The man-machine interface, all closed, dive - filling. High precision, large filling range, compact structure, stable operation. The container filling is applicable to various shapes. Disassembly, cleaning liquid cylinder and pipe, convenient and quick.
All contact liquid components are made of SUS304/316 material of stainless steel, the beauty is generous. In accordance with GMP standard.
The servo control, piston filling form.PLC and man-machine interface. A four set for regulating the amount of memory data, replacing the dose is more convenient.
Configuration of online weighing feedback system combined with PLC system, real-time automatic adjustment influence oil volume and temperature on the filling accuracy.
Specifications:
|
Type |
Heads |
Suitable bottles |
Capacity (bottle/hour) |
Precise |
Size of Machine(mm) |
Power (kW) |
Power source |
Air source |
|
SFJ -12D |
12 |
round barrel: ≤Φ30mm,≥Φ30customize |
1L:3500,5L:2800 |
1-5L:±5ml |
2200×1500×2200 |
5 |
220V; 50Hz |
0.6MPa |
|
SFJ -8D |
8 |
1L:2200,5L:1600 |
2000×1100×2200 |
4 |
||||
|
SFJ -6D |
6 |
1L:1800,5L:1200 |
2000×1100×2200 |
3 |
||||
|
SFJ -4D |
4 |
1L:1000,5L:800 |
1600×1100×2200 |
3 |
Our machines are having the following unique features :
|
* |
Our machines are reputed for high accuracy. |
|
* |
Unique with respect to container interchangeability with minimum size parts. |
|
* |
Quick change over, minimum down time and highly operator friendly. |
|
* |
Custom built for the Food and packaging Processing Industry. |
|
* |
Microprocessor controls with human – machine interface and touch screen controls. |
|
* |
Can achieve filling speeds upto 300 containers per minute. |
