| Displacement: | 0.27-1.54mL/r | Speed: | 3000rpm |
|---|---|---|---|
| Max efficiency: | 85% | Dimension: | option |
| แสงสูง: | hydraulic gear motor,gear pump motor |
||

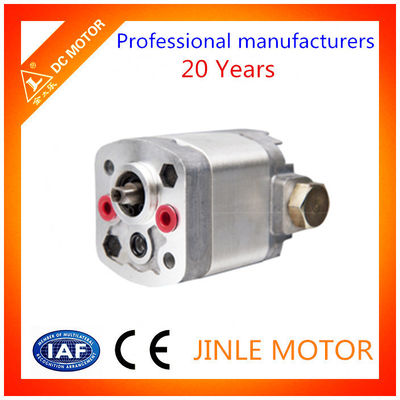

High Quality Hydraulic Gear Pump For Small Bidirectional Hydraulic Systems
General Description
CB-E**S* Bidirectional Gear Pump has a low displacement. It consists of a gear pair supported by bearing blocks, a housing, a flange and a rear cover. Equipped with two check valves in the rear cover, the pump can work in both cw and ccw direction. It is suitable for small bidirectional hydraulic systems.
|
Model |
Displacement |
Pressure (MPa) |
Speed (RPM) |
Displacement |
Efficiency
|
||
|
P1 |
P2 |
P3 |
L(mm) |
||||
|
CB-E0.26*S* |
0.27 |
16 |
18 |
20 |
3000 |
68.7 |
80%
|
|
CB-E0.32*S* |
0.33 |
69.2 |
|||||
|
CB-E0.38*S* |
0.39 |
69.6 |
82%
|
||||
|
CB-E0.50*S* |
0.49 |
70.5 |
|||||
|
CB-E0.60*S* |
0.61 |
71.5 |
85%
|
||||
|
CB-E0.63*S* |
0.64 |
71.7 |
|||||
|
CB-E0.75*S* |
0.76 |
72.7 |
|||||
|
CB-E0.88*S* |
0.88 |
73.7 |
|||||
|
CB-E1.00*S* |
1.00 |
74.7 |
|||||
|
CB-E1.25*S* |
1.25 |
76.7 |
|||||
|
CB-E1.50*S* |
1.54 |
79 |
|||||
